R-Series Desiccant Breathers Contamination Control
Description

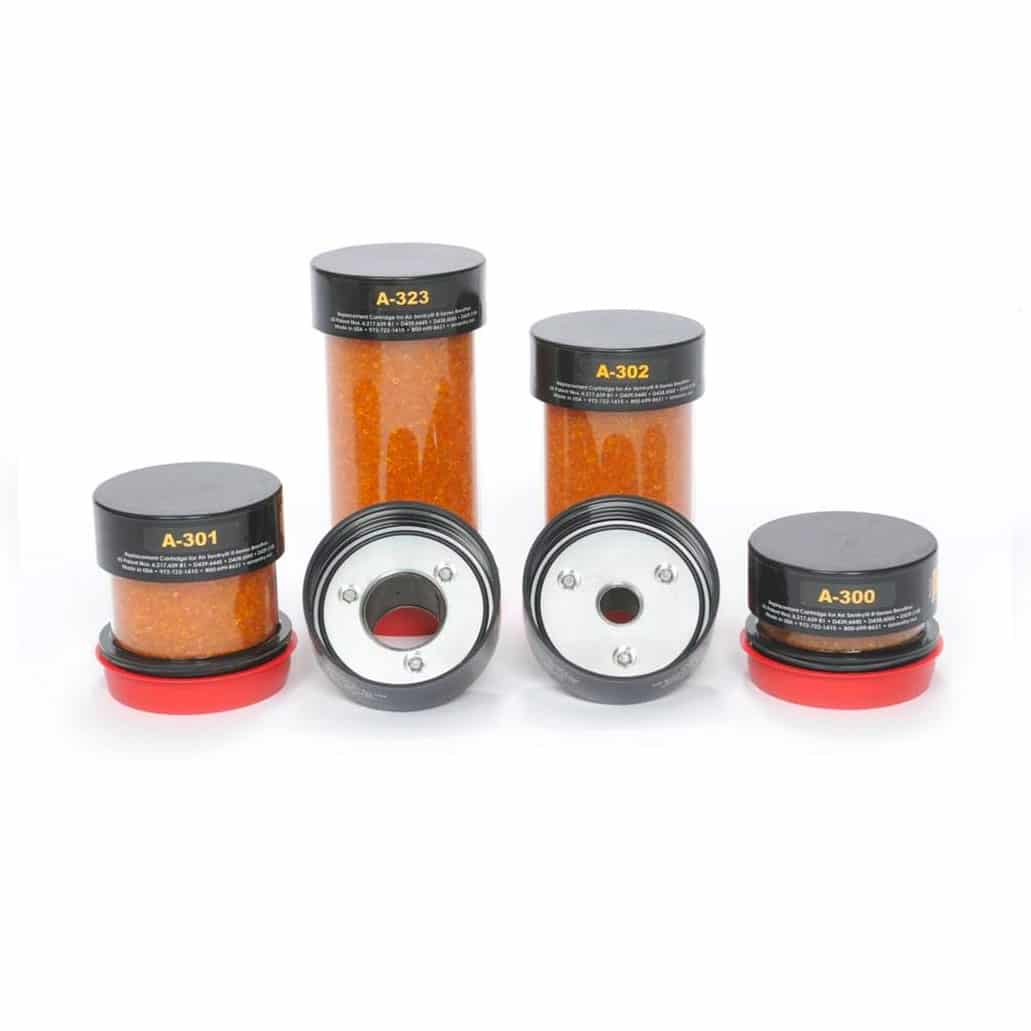

R-Series Breathers are ideal for heavy equipment that is productive and on the move and outfitted with hydraulic fluid tanks or reservoirs that breathe in the dirty outside air. This heavy-duty breather series is designed for high-vibration, mobile applications, to include, off-road, construction and farm vehicles. R-Series breathers easily mount in place of standard breather caps by rugged steel pipe threads and a reusable metal base. When the gold silica gel cartridge turns dark green, simply install a new replacement cartridge to keep things moving.
All R-Series models feature two 2 micron filters, one on the inlet and a second on the outlet.
Operating Temperature: -20°F (-29°C) to +200F (+93°C)
Applications – Cranes • Railroads • Farm Implements • Construction Vehicles • Off-Road Trucks
Specifications
| Base Material | 100% Silica Gel |
Model Specifications
| Model | Height | Diameter | Mounting Connection | Silica Gel | Maximum Adsorption Capacity | Maximum Air Flow | Maximum Reservoir Fluid Flow | Type of Medium | Uses Replacement Cartridge |
|---|---|---|---|---|---|---|---|---|---|

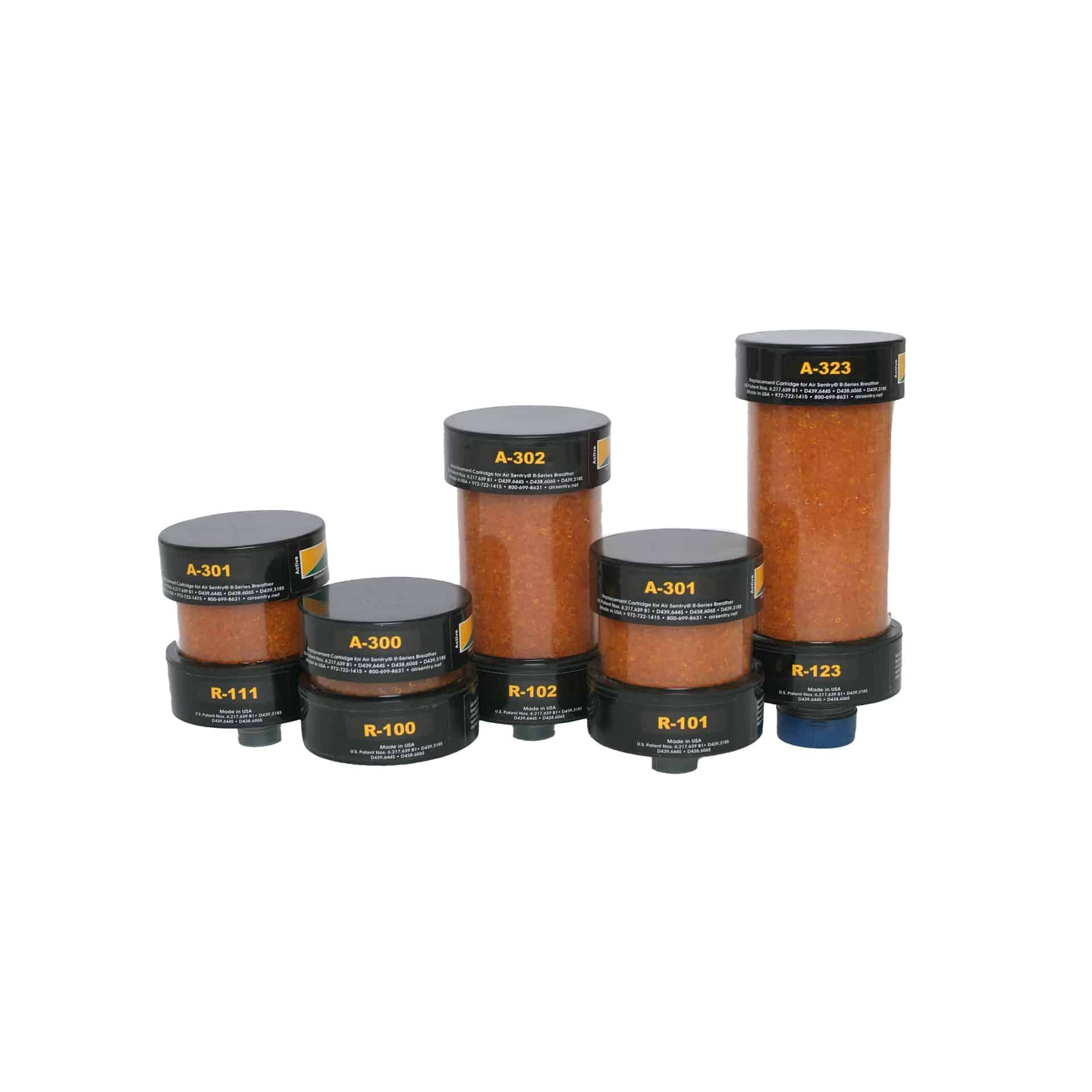

| R-101 | 6.5 in 16.5 cm | 5.2 in 13.2 cm | 1″ MNPT | 1.4 lbs 0.6 kg | 8.6 fl oz 254 mL | 25 cfm | 187 gpm | 100% Silica Gel | A-301 |
| R-102 | 9.5 in 24.1 cm | 5.2 in 13.2 cm | 1″ MNPT | 2.7 lbs 1.2 kg | 16.56 fl oz 489 mL | 25 cfm | 187 gpm | 100% Silica Gel | A-302 |
| R-111 * | 6 in 15.2 cm | 5.2 in 13.2 cm | 1.125″ Female thread | 1.4 lbs 0.6 kg | 8.6 fl oz 254 mL | 25 cfm | 187 gpm | 100% Silica Gel | A-301 |
| R-121 | 6.5 in 16.5 cm | 5.2 in 13.2 cm | 2″ MNPT | 1.4 lbs 0.6 kg | 8.6 fl oz 254 mL | 25 cfm | 187 gpm | 100% Silica Gel | A-301 |
| R-122 | 9.5 in 24.1 cm | 5.2 in 13.2 cm | 2″ MNPT | 2.7 lbs 1.2 kg | 16.56 fl oz 489 mL | 25 cfm | 187 gpm | 100% Silica Gel | A-302 |
| R-123 | 12 in 30.5 cm | 5.2 in 13.2 cm | 2″ MNPT | 3.5 lbs 1.6 kg | 21.47 fl oz 634 mL | 25 cfm | 187 gpm | 100% Silica Gel | A-323 |
* Note: 1. Use R-111 with A-306
2. Models with other media are available.
Common Uses for R-Series
Industries
- Agriculture
- Mining
- Oil & Gas
- Power Generation
- Rail
- Steel
Applications
- Agriculture / Farm Machines
- Cranes
- Earthmoving / Mobile Machines
- Haul Trucks
- Railroads
- Windmills/Turbines
Equipment
- Gearboxes
- Hydraulic Reservoirs
